| ◎ High Frequency Generator Testers for Leak Detection 真空瓶測試器 (產地:美國) |
 |

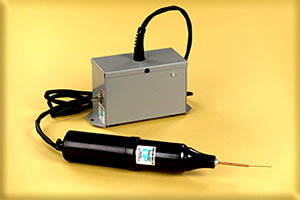

Description: Model BD-10A/BD-10AS * Model BD-10A is the standard tester * Model BD-10AS features a momentary ON/OFF switch * OUTPUT: 10,000-50,000 volts at frequency of approx. 1/2 megahertz |
 |
Description: Model BD-20A * Produces a softer spark * Spring tip for soft surface contact * OUTPUT: 10,000-48,000 volts at frequency of 4 to 5 megahertz |
|

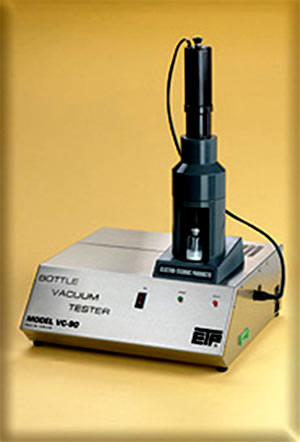

Description: Model VC-90 * The Model VC-90 is a single bottle tester based upon the same patented technology used in the Model VC-105 Automated Bottle Vacuum Testing System. * A vial or bottle is placed in the test compartment, and a high frequency, high voltage is applied in conjunction with a momentary light from a flashtube. Sensing circuitry determines whether the gas in the container has ionized, indicating a sufficient vacuum. After the test, a Accept or Reject lamp is lit. No operator controls or complicated indicators to read. An enhanced model features a metered output. |
自動化真空瓶測試系統
|

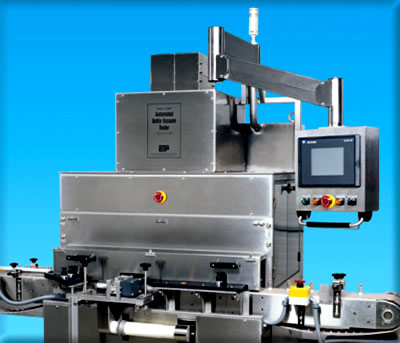

Description: Model VC-105A * Automated, High Speed - for fast throughput requiring no operator intervention * Adaptable - can be made to fit conventional, in-line batch production systems * Completely Nondestructive Testing - speed, test field and exposure are optimized to assure no effect upon product * Prove Reliability - with redundant logic to prevent possibility of reject containers being accepted |
