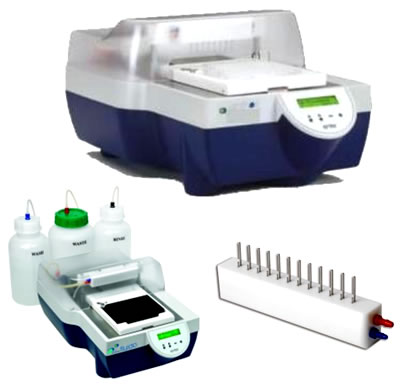

Microplates washer 微孔盤反應儀
• Up to 3 different wash channels
• Vacuum and pressure free system for quiet operation
• Easy operation/ color coded tube fittings
• Bottom and overflow washing
• Crosswise aspiration for low residual volume
• 3 different rinse modi (to avoid clogging of the
　 instrument)
• Easy plate setup (bottom detection and travel height
　 position for fast processing)
• Automatic well depth detection
• Automatic travel height positioning for fast plate
　 processing
• 20 different cycles/ 50 different procedures/ 20 plates
• Upgrade-Kit for washing 384 well plates as option

Type: 340
The 340 is a universal microplate absorbance reader for a wide range of colorimetric assays.
The instrument provides an ideal solution for basic research as well as routine applications.
The different measurement modes of the instrument (single and dual wavelength,
kinetic mode, linear well scan and area scan) can handle a broad range of applications.
•Wavelength range 340 - 750nm
•Fast measurement: 10 seconds for 96 wells
•Excellent optical specifications (0.0001 Abs resolution)
•Multiple plate formats: from 6 - 384 well plates
•Different measurement modes handle a broad range of assays:
* single and dual wavelength for standard ELISA applications,
* kinetic mode for kinetic and enzyme activity studies,
* linear scan for agglutination and coagulation assays,
* XY-scan: 7x7 data points in 96 well; 32x32 data points in 6 well

Type: 400
•Fast multi-channel system: 5 seconds for 96 well plate
•Wavelength range 400-800nm Integral 4- mode shaking
•Flexible wavelength selection, filter wheel can hold up to 6 filters
•Versatile On-board Software with Qualitative, Quantitative and Kinetic functions.
•Variety of curve-fit methods
　 * linear regression
　 * parabolic,
　 * Cubic
　 * point to point,
　 * spline and
　 * 4 parameter
•Low profile self-centring plate mechanism
•Auto check/calibrate procedure
•On-board method and results storage
•software allowing direct control of the reader from an external PC.

Type: 2020
•Wavelength range 400 - 750nm
•Proven optical system
•Single- or dual wavelength measurements/kinetic measurements
•ADAP Basic Software for user administration, kinetic data reduction
　and flexible Data management and data storage.

Type: 200ST
•Wavelength range: 190 -1000nm
•Excellent optical specifications (0.0001 Abs resolution)
•Measurement modes: endpoint, kinetic, multichromatic, spectral 　scanning and position scanning
•Multiple plate formats: cell culture plates (6-48) and 96/384 well plates
•Cuvettes format: standard cuvettes, 10mm pathlength, 5-10mm 　pathwidth
•Temperature control: 4°C above ambient up to 45°C
•Fast measurement: 11 seconds for 96 wells, 19 seconds for 384 wells 　(endpoint reading)
•Optional ADAP Prisma Software (refer to ADAP Software data sheet 　for details)
•PC controlled version, serial interface, ADAP Basic software, 　temperature control

Type: PHO
PHO is a state of the art microplate reader,
designed to meet the demanding requirements of today’s microplate based, photometric applications.
•Scan function: High resolution scanning. Up to 29 points/well
•Light Source: LED Calibration: Self calibrating
•Wavelength: 400nm - 700nm
•Plate Type: 96 (8x12), 48 (4x12) flat-, U- and V-bottom
•Measurement channels: 8
•Indication Range: 0.000 – 4.500 OD
•Resolution: 5 sec single wavelength
　　　　　　8 sec dual wavelength (kinetic interval)
•Filters: up to 8. Standard 405nm, 450, 492, 620
•Shaking: 3 modes
•Power supply: external
